SINGLE AXLE STEEL SIDE UT.5K
Standard Features
| GVWR: | 5,000 lbs |
| AXLES: | (1) 5,200 lbs Axle w/Easy Lube Spindles |
| SUSPENSION: | Double Eye Spring Suspension |
| TIRES: | ST225/75R15 LRE Radial |
| COUPLER: | 2" A-frame Coupler |
| JACK: | 7,000 lbs Drop Leg Jack |
| DECK HEIGHT: | 17" |
| SIDES: | 16" Solid Steel + 3" Tie Rail |
| RAMPS: | 4' Straight Ramp w/ Mesh |
| FLOOR: | Pressure Treated Wood |
| TONGUE LENGTH: | Range 40"-46" |
| TIE DOWNS: | (4) Welded in D-ring |
| SPARE TIRE MOUNT: | Front of Bed, Upright |
| LIGHTS: | Sealed Beam, L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 4-way Flat |
| FINISH: | Powder Coat + Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| UT58-5K | 60.5" X 8' | 1015 lbs | 3985 lbs | |
| UT510-5K | 60.5" X 10' | 1087 lbs | 3913 lbs | |
| UT512-5K | 60.5" X 12' | 1172 lbs | 3828 lbs | |
| UT610-5K | 72" X 10' | 1185 lbs | 3815 lbs | |
| UT612-5K | 72" X 12' | 1283 lbs | 3717 lbs | |
| UT614-5K | 72" X 14' | 1381 lbs | 3619 lbs | |

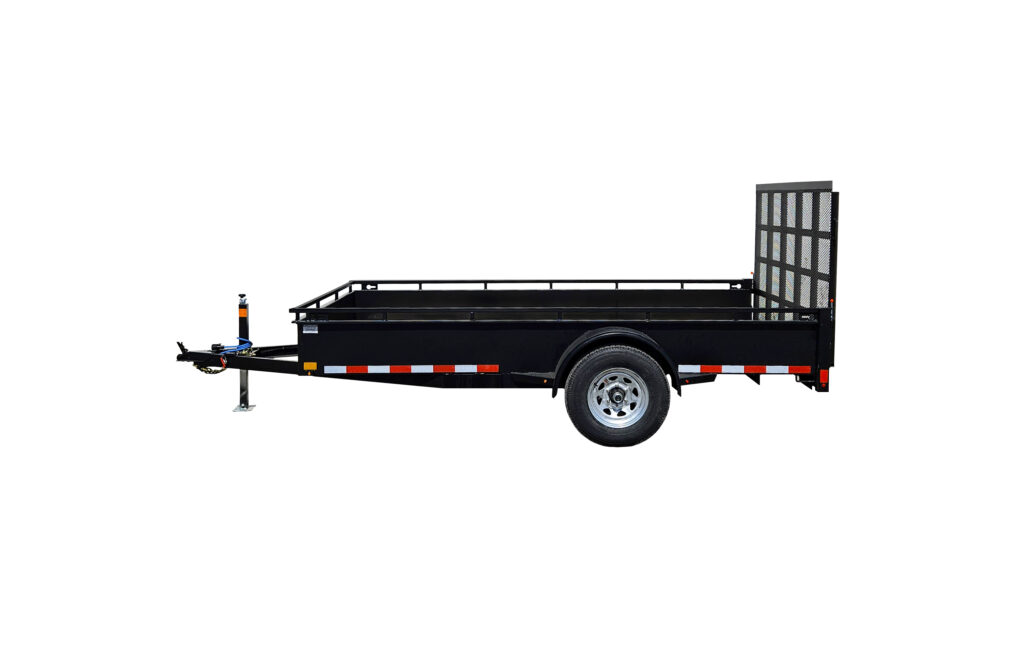

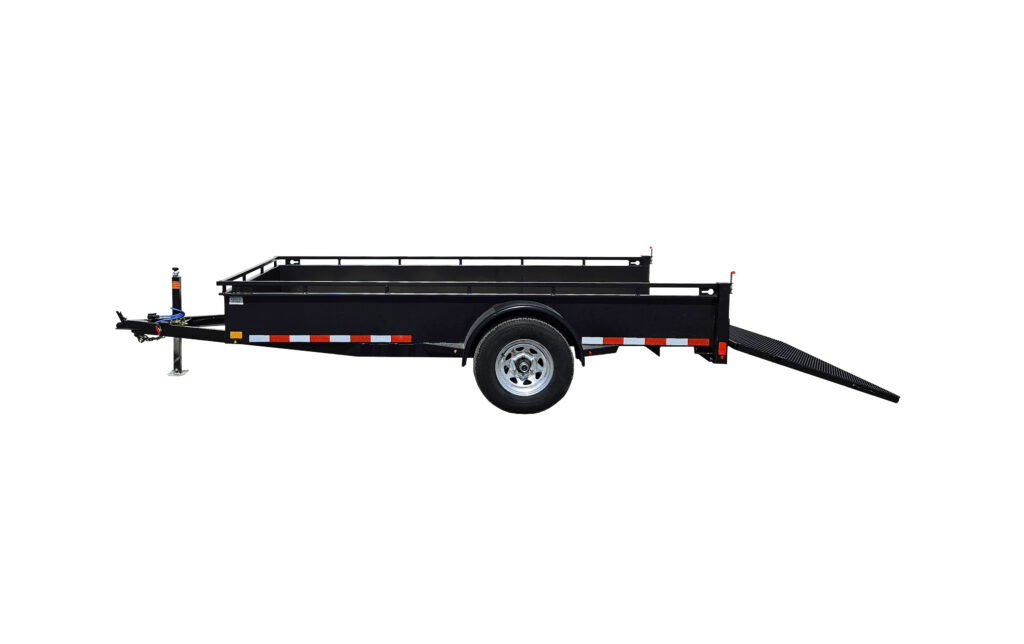

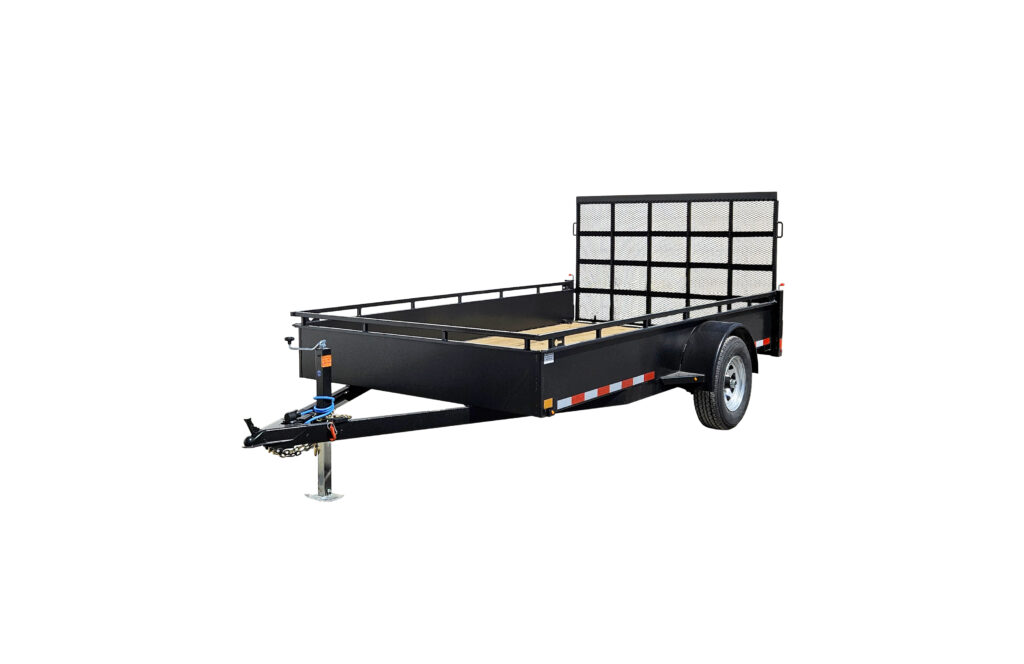

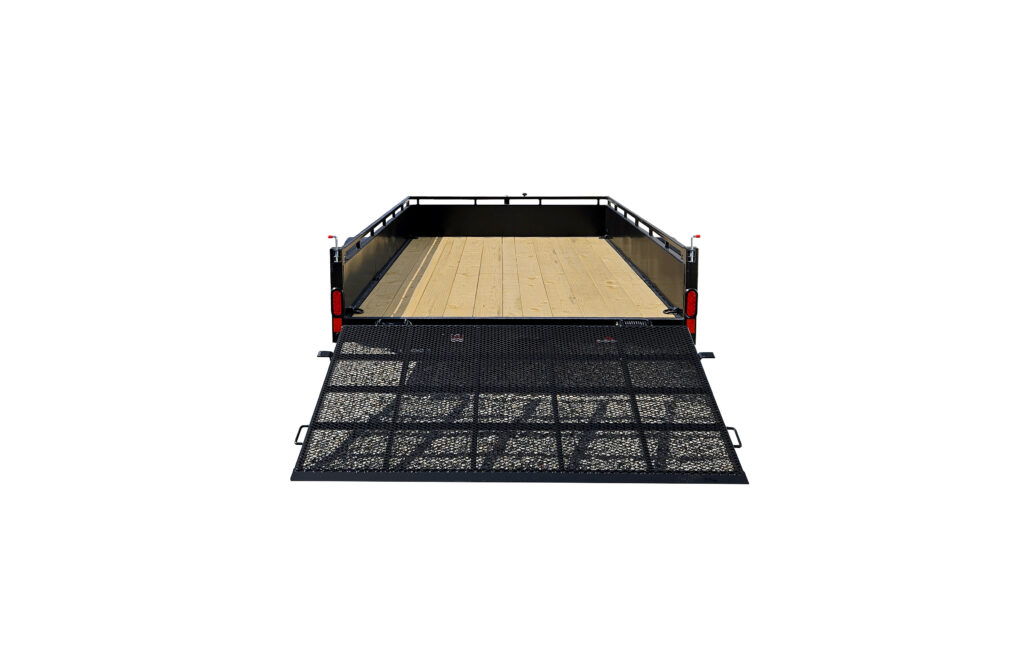

| UT712-5K | 82" X 12' | 1383 lbs | 3617 lbs | |
| UT714-5K | 82" X 14' | 1444 lbs | 3556 lbs |
