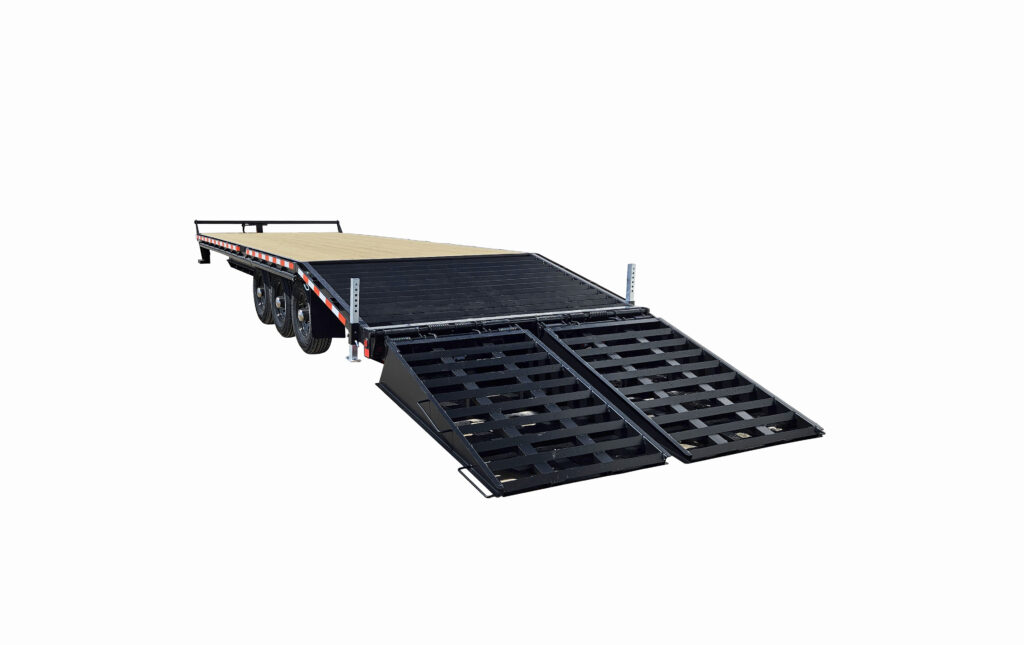

PREMIUM PINTLE SERIES PHFT.21KTR
Standard Features
| GVWR: | 21,000 lbs |
| AXLES: | (3) 7,000 lbs Axles w/Easy Lube Spindles |
| SUSPENSION: | Slipper Spring Suspension |
| TIRES: | ST235/80R16 LRE Radial |
| BRAKES: | Electric on All Axles |
| COUPLER: | Adjustable 3" Lunette Eye |
| JACK: | 12,000 lbs Drop Leg Jack |
| DECK HEIGHT: | 36" |
| FRAME: | 12" @ 19 lbs Heavy Wide-Flange Beams Crossmembers every 16" Flex Resisting Bridge |
| BEAVERTAIL: | 5' Beavertail with Checherplate Steel Floor & Spring Assisted Pop-up Center |
| RAMPS: | 5' Spring-Assisted Wedge Ramps |
| FLOOR: | Pressure Treated Wood |
| TONGUE LENGTH: | 62" |
| TIE DOWNS: | Stake Pockets & Rub Rails |
| SIDE STEPS: | On Both Sides |
| WINCH TRACK: | Driver's Side |
| SPARE TIRE MOUNT: | Optional - Tongue Mount Only |
| LIGHTS: | Sealed Beam, L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 7-way RV Plug |
| FINISH: | Powder Coat + Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| PHFT20-21KTR | 102" X 20' | 5,467 lbs | 15,533 lbs | |
| PHFT25-21KTR | 102" X 25' | 6,078 lbs | 14,922 lbs | |
| PHFT28-21KTR | 102" X 28' | 6,481 lbs | 14,519 lbs | |
| PHFT30-21KTR | 102" X 30' | 6,800 lbs | 14,200 lbs | |
| PHFT32-21KTR | 102" X 32' | 7,038 lbs | 13,962 lbs |
