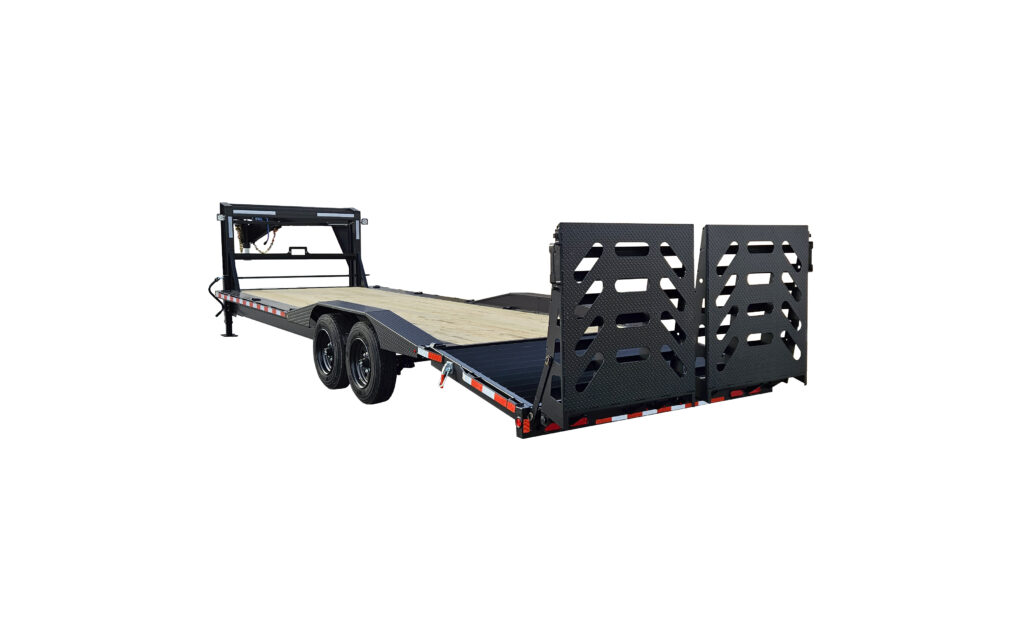

GOOSENECK EQUIPMENT TRAILERS GNCE.16K – 102″ WIDE
Standard Features
| GVWR: | 17,280 lbs |
| AXLES: | (2) 8,000 lb Axles |
| SUSPENSION: | Slipper Spring Suspension |
| TIRES: | 215/755R17.5 LHR Radial |
| BRAKES: | Electric on Both Axles |
| COUPLER: | Adjustable Gooseneck Coupler |
| JACK: | (2)12,000 lbs Drop Leg Jacks |
| FENDERS: | HD Fenders |
| DECK HEIGHT: | 24" |
| BEAVERTAIL: | 3' Wood with 3' Mega Ramps or 4' Wood with 4' Mega Ramps |
| RAMPS: | 3' or 4' Spring Assisted Fold Flat Mega Ramps |
| FLOOR: | Pressure Treated Wood |

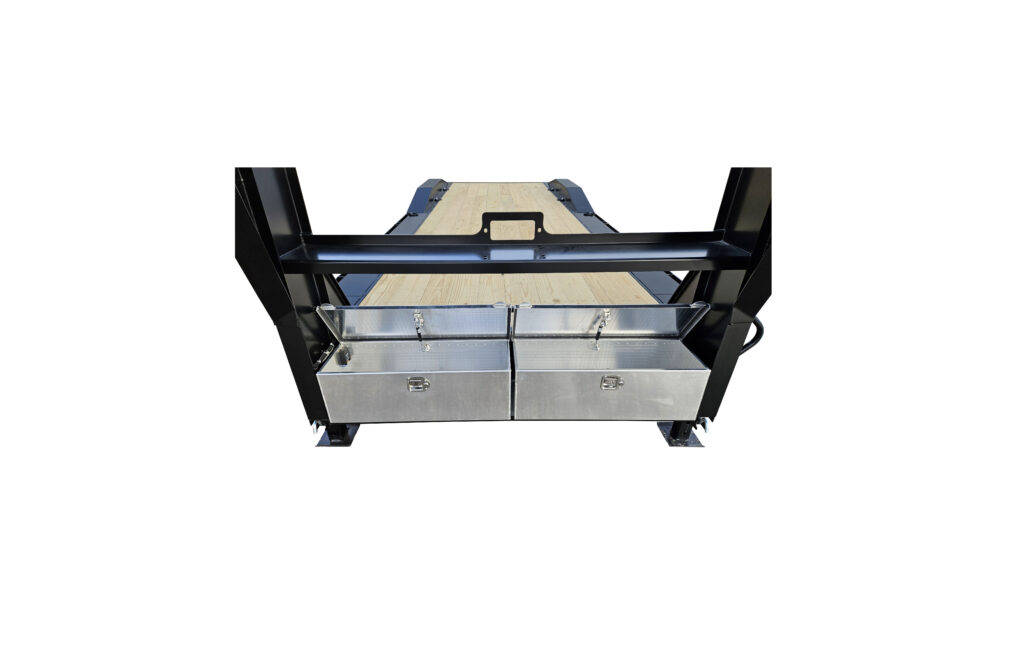

| WINCH PLATE: | Yes, Raised Between Gooseneck |
| GOOSENECK LENGTH: | 9' |
| TIE DOWNS: | Stake Pockets & Rub Rails |
| SPARE TIRE MOUNT: | On Gooseneck |
| LIGHTS: | Sealed Beam L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 7-way RV Plug |
| FINISH: | Powder Coad & Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| GNCE102x18-16K | 102" x 216" | 4,536 lbs | 12,744 lbs | |
| GNCE102x20-16K | 102" x 240" | 4,739 lbs | 12,541 lbs | |
| GNCE102x22-16K | 102" x 264" | 5,040 lbs | 12,240 lbs | |
| GNCE102x24-16K | 102' x 288" | 5,260 lbs | 12,020 lbs | |
| GNCE102x26-16K | 102" x 312" | 5,482 lbs | 11,798 lbs | |
| GNCE102x28-16K | 102" x 336" | 5,704 lbs | 11,576 lbs |
