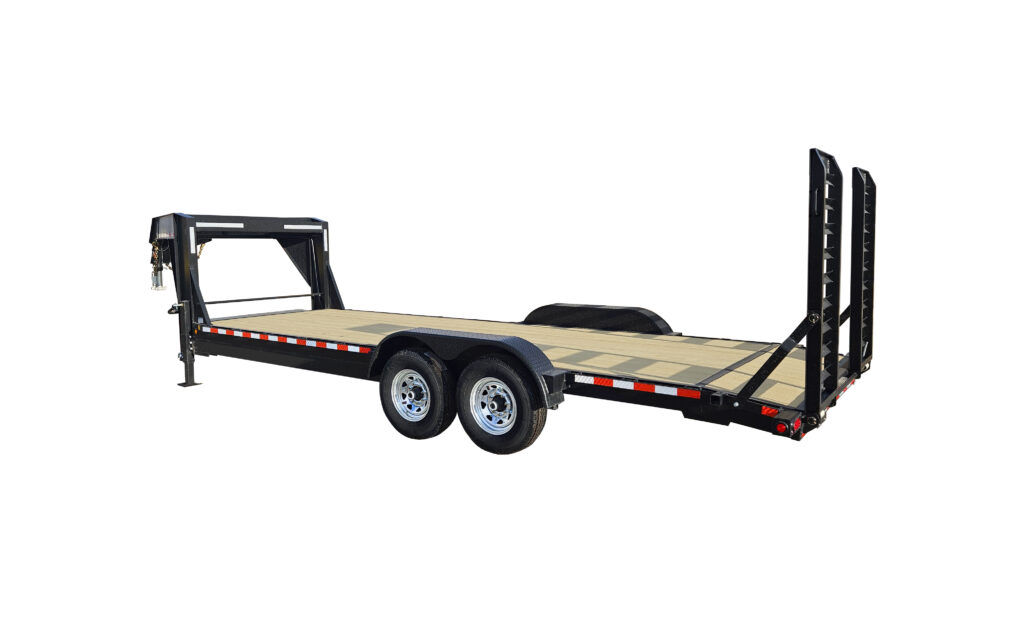

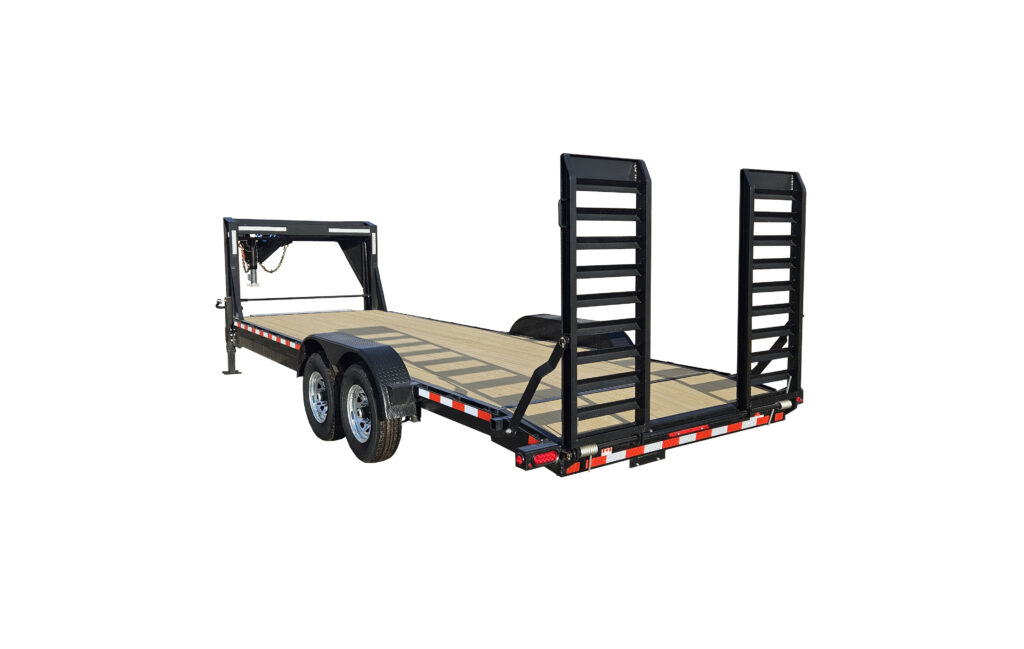

GOOSENECK EQUIPMENT TRAILERS GNCE.14K
Standard Features
| GVWR: | 15,120 lbs |
| AXLES: | (2) 7,000 lb Axles |
| SUSPENSION: | Slipper Spring Suspension |
| TIRES: | ST235/80R16 LRE Radial |
| BRAKES: | Electric on Both Axles |
| COUPLER: | Adjustable Gooseneck Coupler |
| JACK: | (2) 12,000 lbs Drop Leg Jacks |
| FENDERS: | HD Fenders |
| DECK HEIGHT: | 24" |
| BEAVERTAIL: | 2' with Wood Floor |

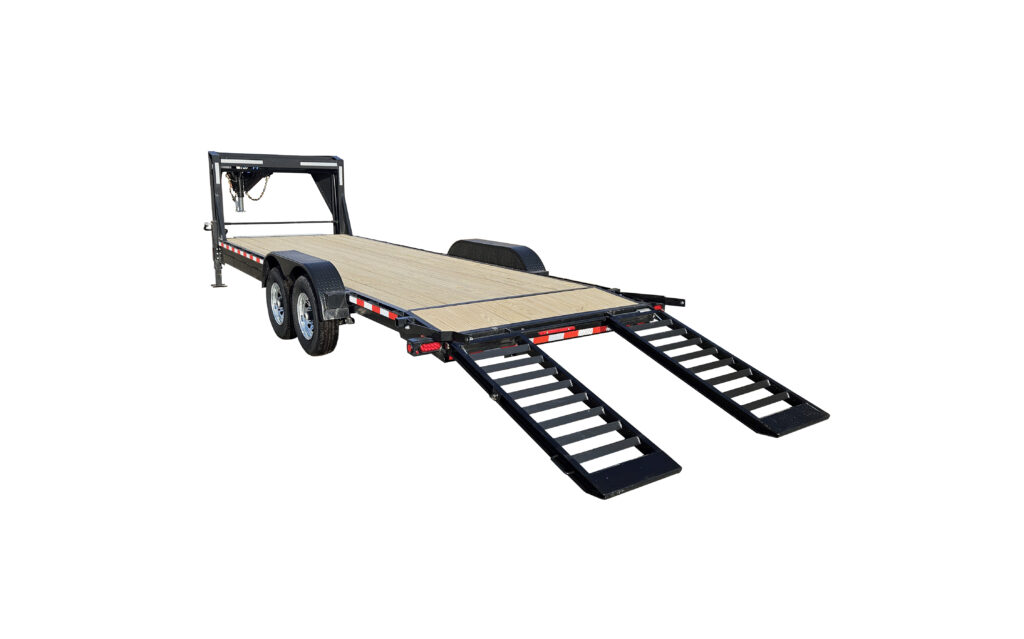

| RAMPS: | 5' Spring-Assisted Up-right Ramps |
| FLOOR: | Pressure Treated Wood |
| GOOSENECK LENGTH: | 9' |
| TIE DOWNS: | Stake Pockets & Rub Rail |
| SPARE TIRE MOUNT: | On Gooseneck |
| LIGHTS: | Sealed Beam, L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 7-way RV Plug |
| FINISH: | Powder Coat + Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| GNCE714-14K | 80" x 168" | 3,709 lbs | 11,411 lbs | |
| GNCE716-14K | 80" x 192" | 3,842 lbs | 11,278 lbs | |
| GNCE718-14K | 80" x 216" | 4,017 lbs | 11,103 lbs | |
| GNCE720-14K | 80" x 240" | 4,116 lbs | 11,004 lbs | |
| GNCE722-14K | 80" x 264" | 4,355 lbs | 10,765 lbs | |
| GNCE724-14K | 80" x 288" | 4,500 lbs | 10,620 lbs | |
| GNCE726-14K | 80" x 312" | 4,658 lbs | 10,462 lbs | |
| GNCE728-14K | 80" x 336" | 4,861 lbs | 10,259 lbs | |
| GNCE732-14K | 80" x 360" | 5,136 lbs | 9,984 lbs |
