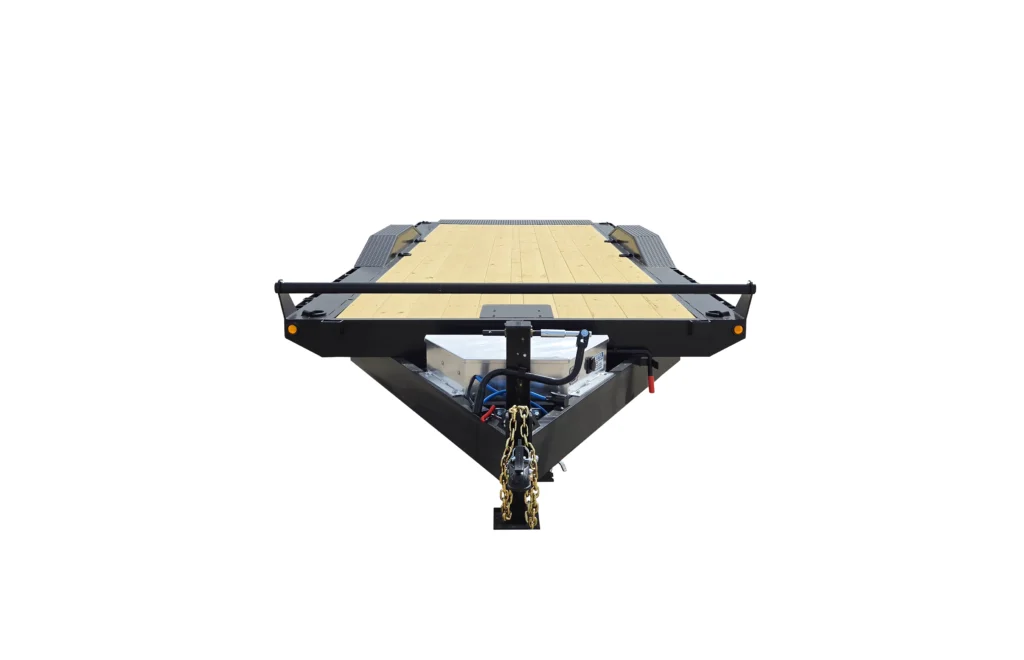

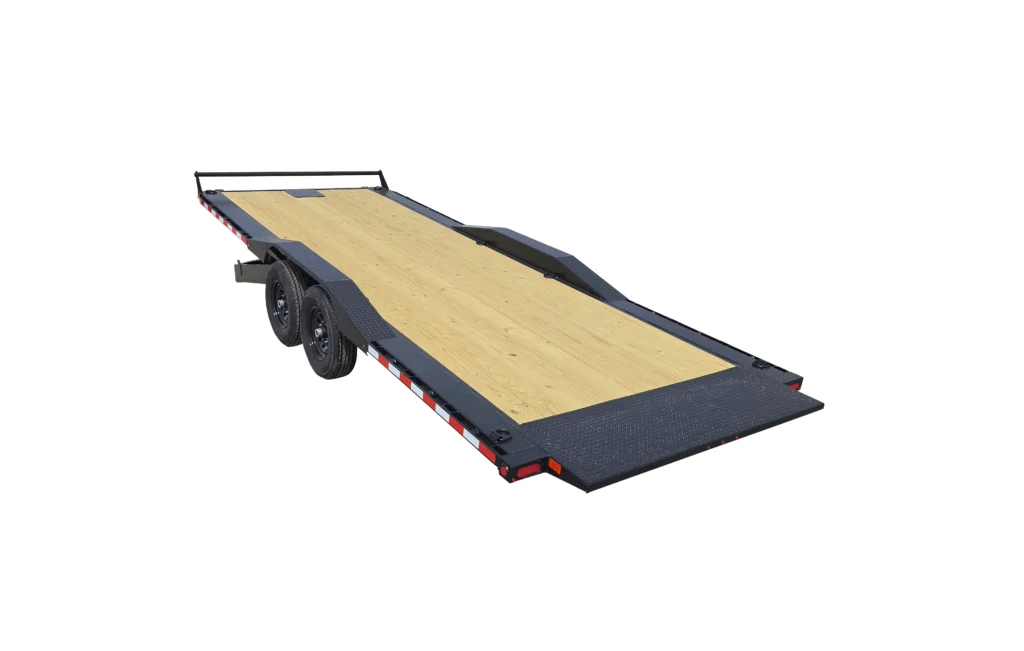

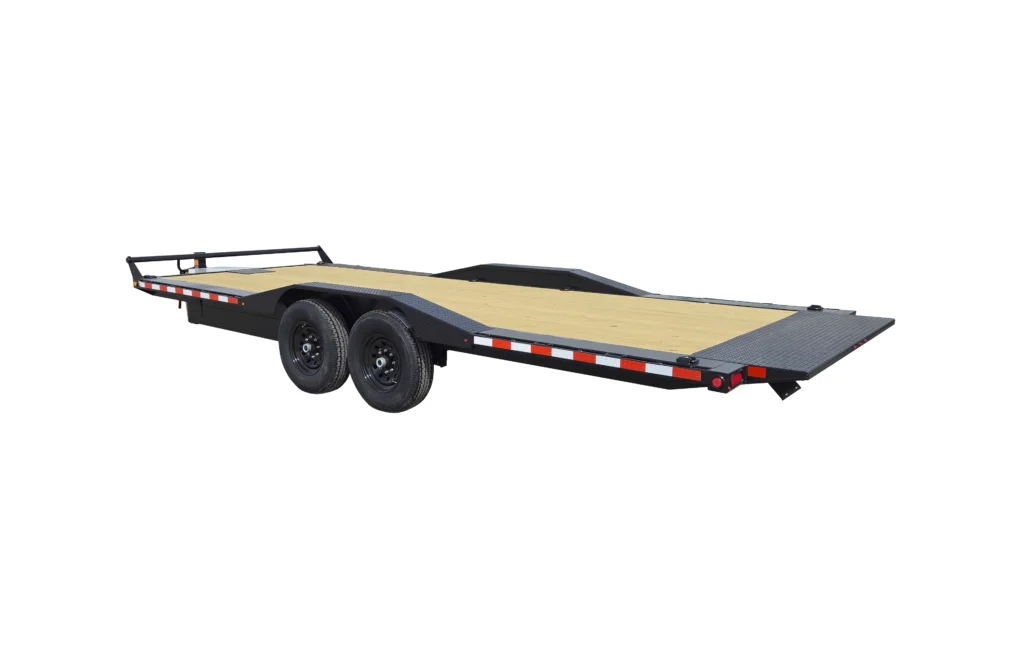

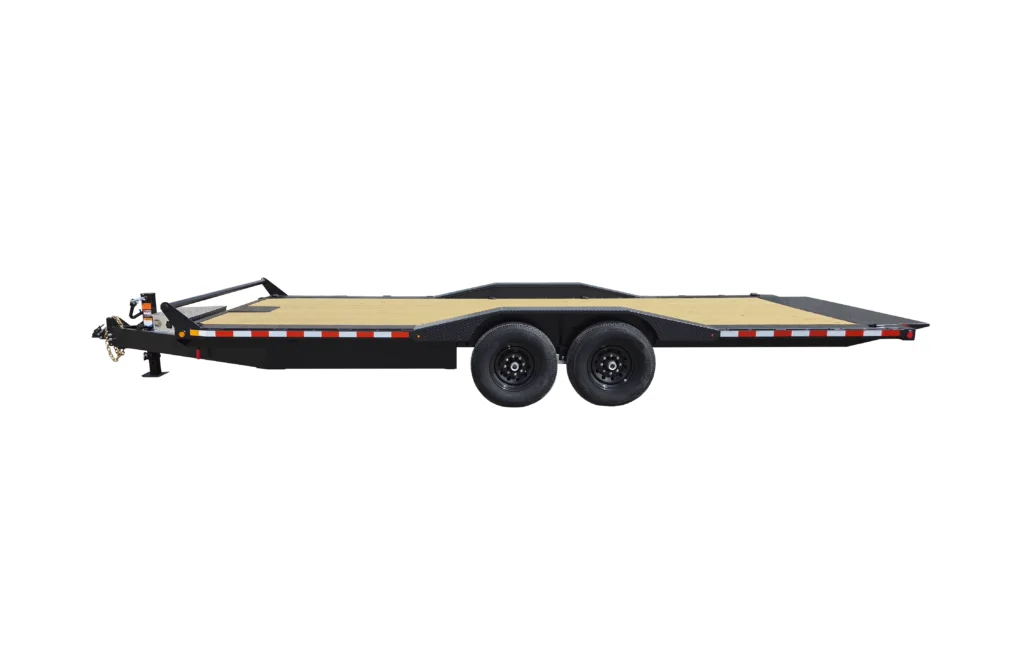

HYDRAULIC POWER-TILT ETL.14K – 102″ WIDE
Standard Features
| GVWR: | 15,120 lbs |
| AXLES: | (2) 7,000 lbs Axles w/Easy Lube Spindles |
| SUSPENTION: | Slipper Spring Suspension |
| TIRES: | ST235/80R16 LRE Radial |
| BRAKES: | Electric on Both Axles |
| COUPLER: | Adjustable 2-5/16" Coupler or 3" Lunette Eye |
| JACK: | 12,000 lbs Drop Leg Jack |
| FENDERS: | HD Drive Over Fenders |
| WINCH PLATE: | Yes |
| DECK HEIGHT: | 24" |
| TILT FEATURES: | Electric over Hydraulic Full Tilt 3" Hydraulic Cylinder Interstate Extreme Cycle Battery Lockable Steel Toolbox |
| FLOOR: | Pressure Treated Wood and Steel |
| TONGUE LENGTH: | 52" |
| TIE DOWNS: | Stake Pockets, Rub Rails & D-Rings |
| SPARE TIRE MOUNT: | Passenger's Side, Removable |
| LIGHTS: | Sealed Beam, L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 7-Way RV Plug |
| FINISH: | Powder Coat & Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| ETL102X18-14K | 102" x 216" | 3,429 lbs | 11,691 lbs | |
| ETL102X20-14K | 102" x 240" | 3,602 lbs | 11,518 lbs | |
| ETL102X22-14K | 102" x 264" | 4,036 lbs | 11,084 lbs | |
| ETL102X24-14K | 102" x 288" | 4,470 lbs | 10,650 lbs | |
| ETL102X26-14K | 102" x 312" | 4,692 lbs | 10,428 lbs |
