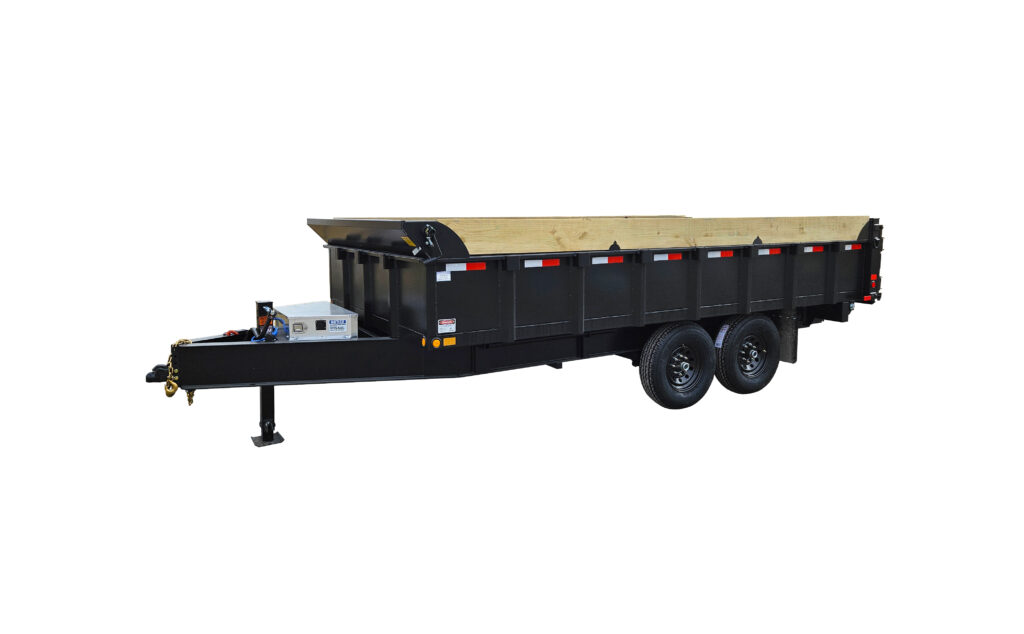

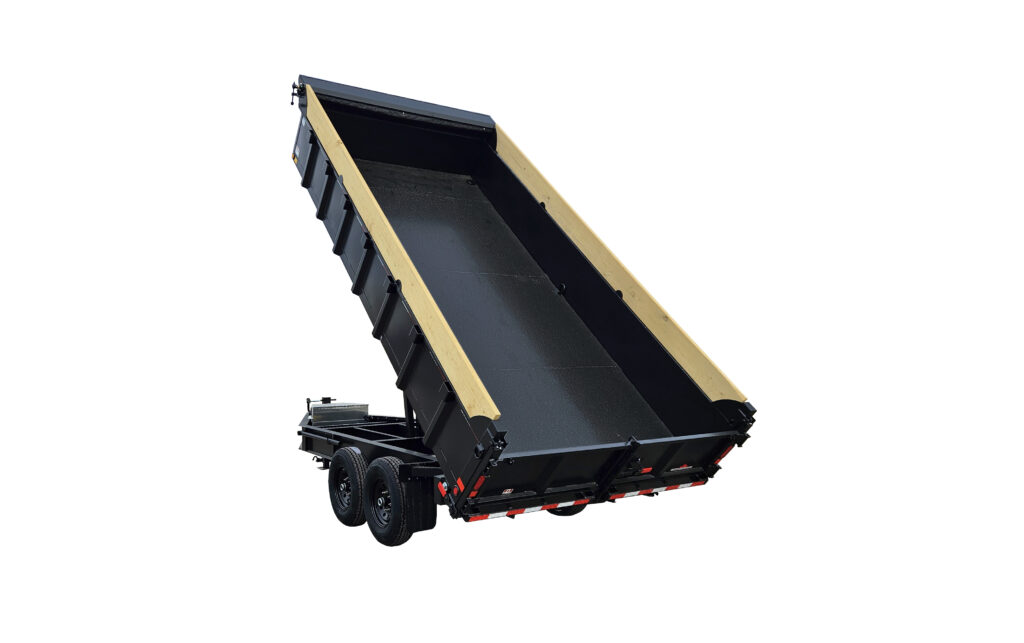

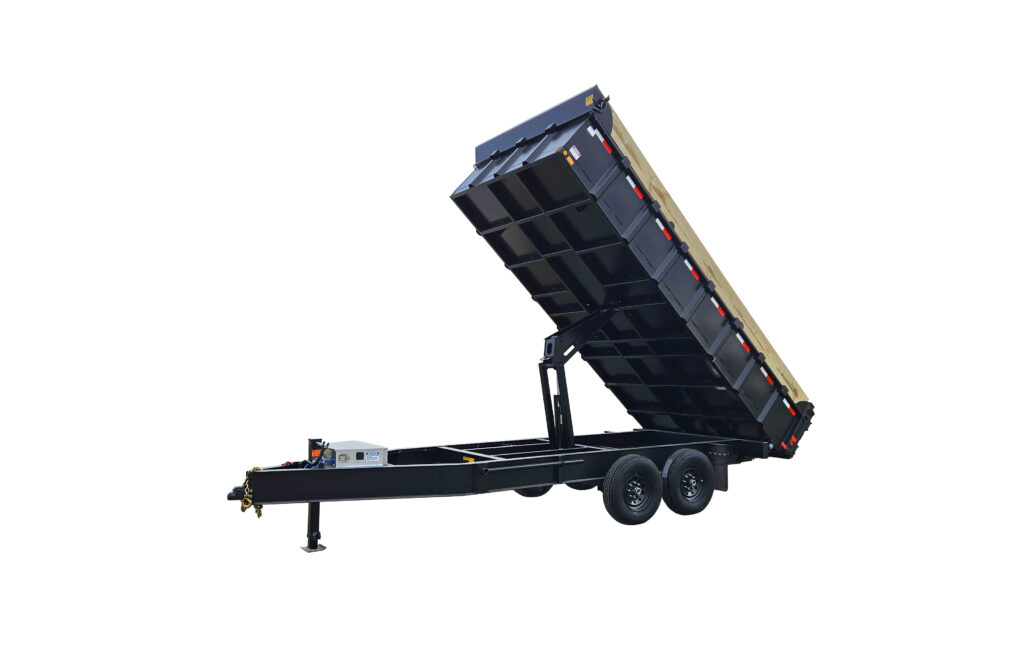

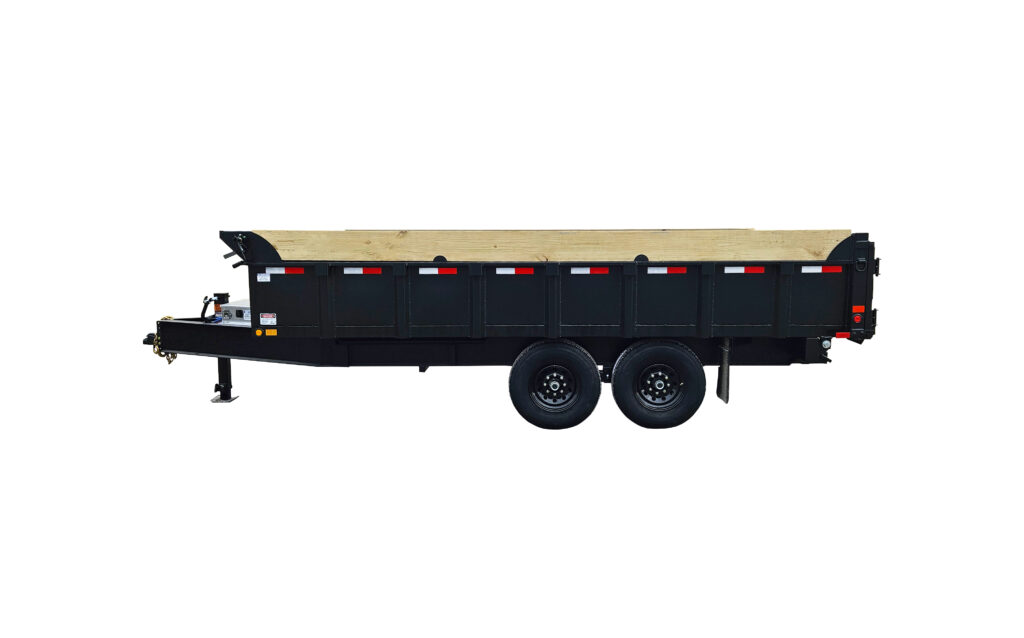

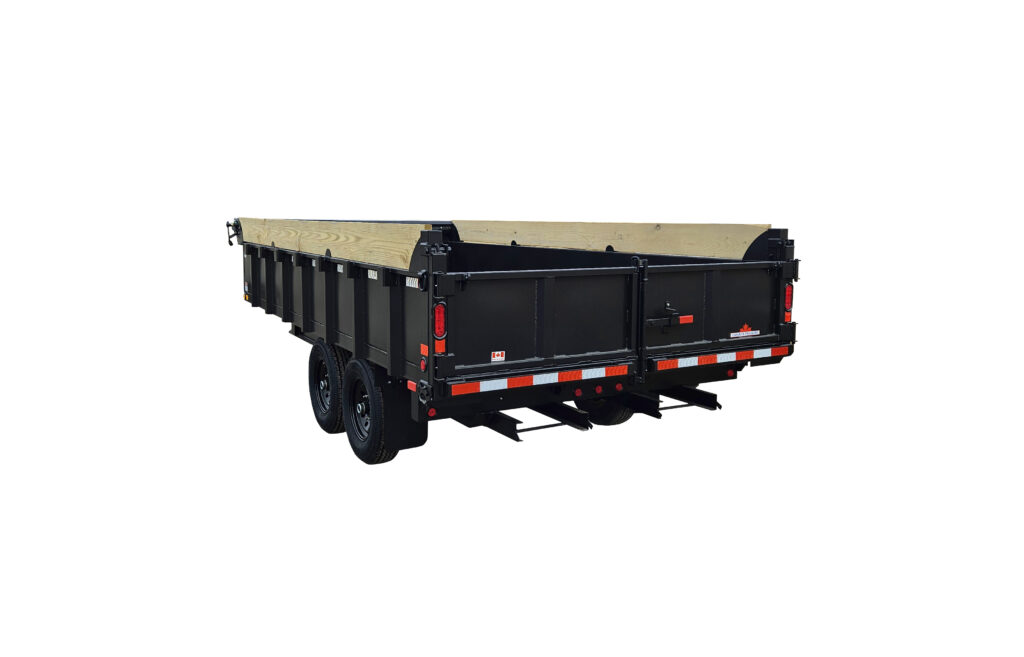

DECK OVER DUMP DT.14K
Standard Features
| GVWR: | 15,120 lbs |
| AXLES: | (2) 7,000 lbs Axles w/ Easy Lube Spindles |
| SUSPENSION: | Slipper Spring Suspension |
| TIRES: | ST235/80R16 LRE Radial |
| BRAKES: | Electric on Both Axles |
| COUPLER: | Adjustable 2-5/16" Coupler or 3" Lunette Eye |
| JACK: | 12,000 lbs Drop Leg Jack |
| HOIST FEATURES: | 3,000 psi Hydraulic Power Pack 20' Hand Remote and Wireless Remote 6" Hydraulic Cylinder & Scissor Hoist Interstate Extreme Cycle Battery and Plug In Charger Lockable Steel Toolbox |
| DECK HEIGHT: | 29" |
| SIDES: | 20" Solid Steel + 10" Wood Plank |
| DOOR: | Barn Doors with Cam Lock Two-way Gate |
| LOAD COVER: | Shielded Tarp & Roller |
| FLOOR: | Steel |
| TONGUE LENGTH: | 52" |
| TIE DOWNS: | (6) Heavy Duty Welded In D-rings |
| SPARE TIRE MOUNT: | Passenger's Side of Box |
| LIGHTS: | Sealed Beam, L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 7-Way RV Plug |
| FINISH: | Powder Coat + Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| DT814-14K | 94" X 166.5" | 5,295 lbs | 9,825 lbs | |
| DT816-14K | 94" X 190.5" | 6,044 lbs | 9,076 lbs |
