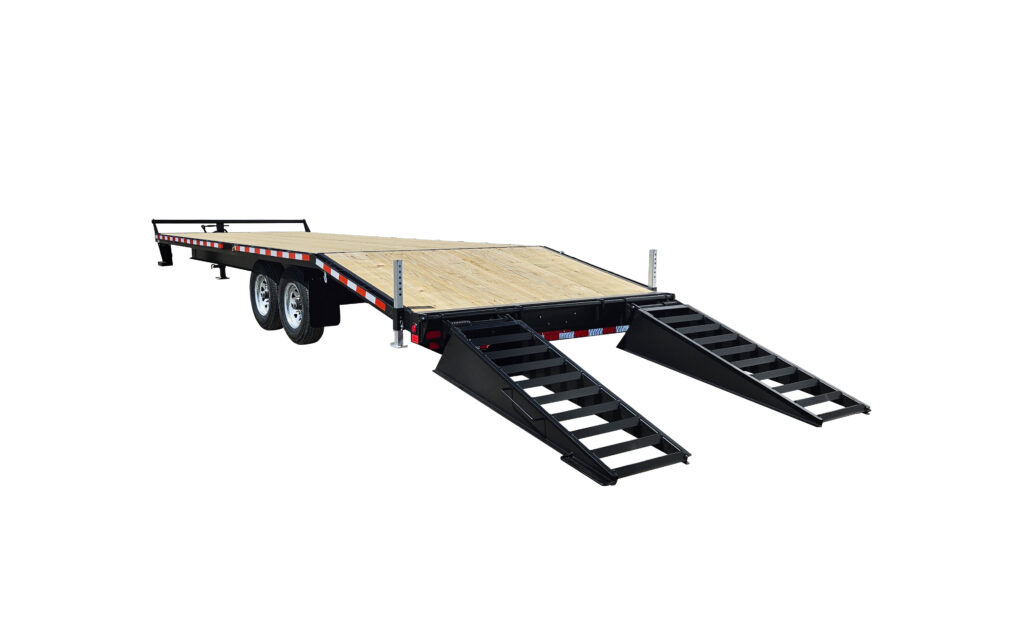

BEAVERTAIL DECK OVER PINTLE SERIES BT.14K
Standard Features
| GVWR: | 15,120 lbs |
| AXLES: | (2) 7,000 lbs Axles w/ Easy Lube Spindles |
| SUSPENSION: | Slipper Spring Suspension |
| TIRES: | ST235/80R16 LRE Radial |
| BRAKES: | Electric on All Axles |
| COUPLER: | Adjustable 2-5/16" Coupler or 3" Lunette Eye |
| JACK: | 12,000 lbs Drop Leg Jack |
| BEAVERTAIL: | 5' Beavertail with Wood Floor |
| RAMPS: | 5' Spring Assisted Wedge Ramps |
| DECK HEIGHT: | 36" |
| FRAME: | Light Weight Ridged Frame Crossmembers Every 16" |
| FLOOR: | Pressure Treated Wood |
| TONGUE LENGTH: | 62" |
| TIE DOWNS: | Stake Pockets & Rub Rails |
| SPARE TIRE MOUNT: | Optional - Tongue Mount Only |
| LIGHTS: | Sealed Beam LED |
| ELECTRICAL | Sealed Harness |
| PLUG: | 7 Way RV Plug |
| FINISH: | Powder Coat & Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| BT22-14K | 102" x 264" | 4,175 lbs | 10,945 lbs | |
| BT25-14K | 102" x 300" | 4,453 lbs | 10,667 lbs |
