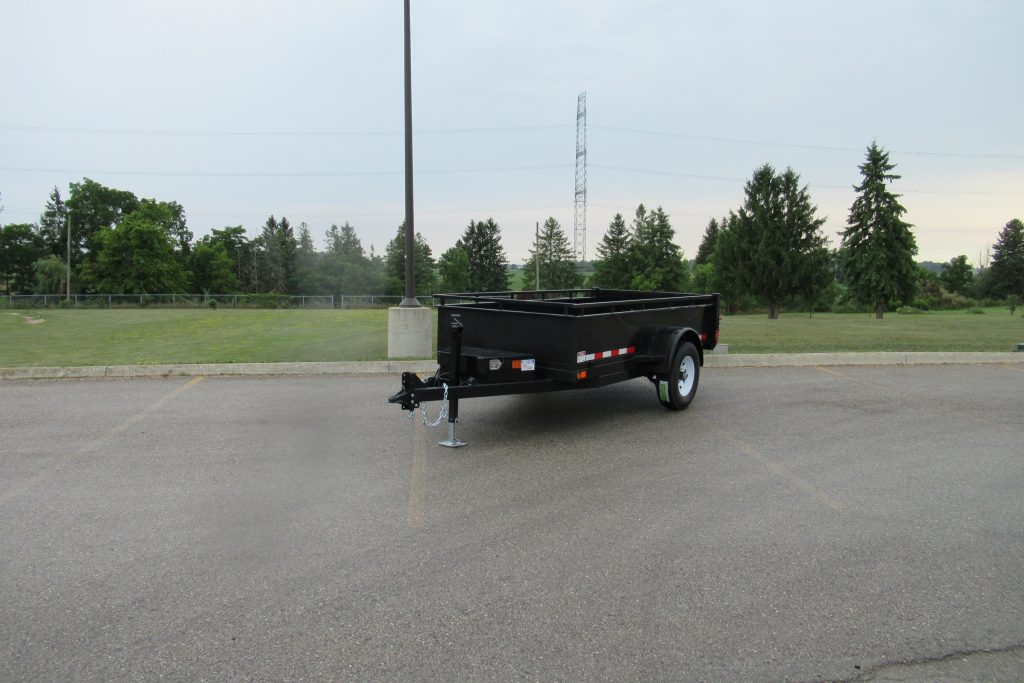

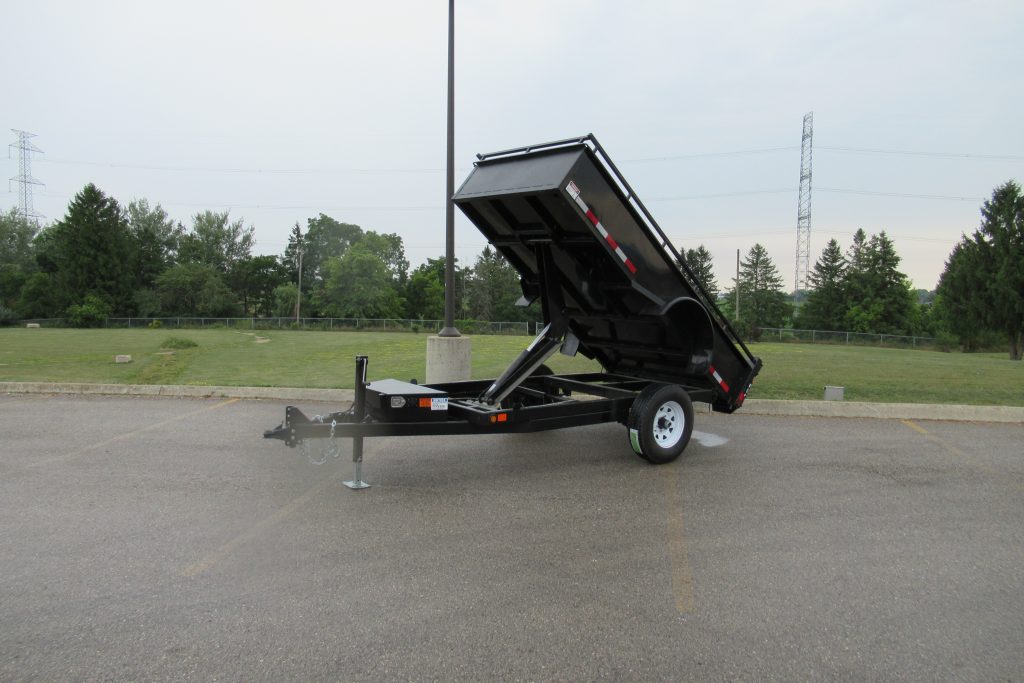

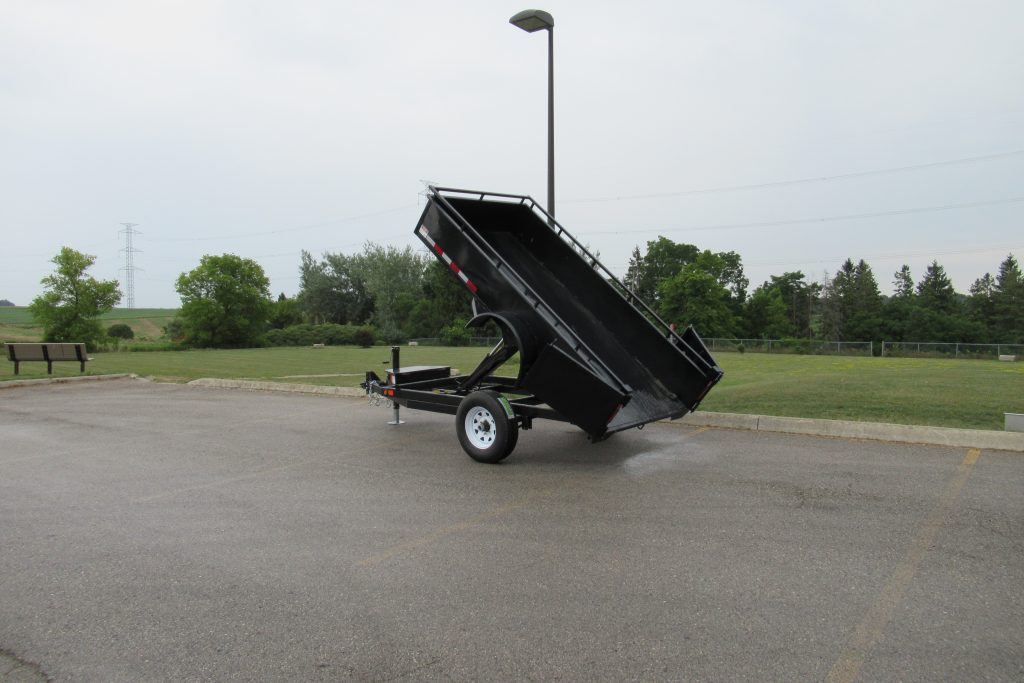

SINGLE AXLE DUMP DT.5K
Standard Features
| GVWR: | 5,200 lbs |
| AXLES: | (1) 5,200 lbs Axles w/ Easy Lube Spindles |
| SUSPENSION: | Slipper Spring Suspension |
| TIRES: | ST225/75R15 LRE Radial |
| BRAKES: | Electric |
| COUPLER: | Adjustable 2-5/16" Coupler or 3" Lunette Eye |
| JACK: | 7,000 lbs Drop Leg Jack |
| DECK HEIGHT: | 20" |
| HOIST FEATURES: | 3,000 psi Hydraulic Power Pack 20' Hand Remote and Wireless Remote 3" Hydraulic Cylinder & Scissor Hoist Interstate Extreme Cycle Battery and Plug In Charger Lockable Steel Toolbox |
| SIDES: | 17-1/2" Solid Steel + 3" Tie Rail |
| DOOR: | Barn Doors with Cam Lock |
| FLOOR: | Steel |
| TONGUE LENGTH: | 52" |
| TIE DOWNS: | (4) Welded In D-rings |
| SPARE TIRE MOUNT: | Passenger's Side of Box |
| LIGHTS: | Sealed Beam, L.E.D. |
| ELECTRICAL: | Sealed Harness System |
| PLUG: | 7-way RV Plug |
| FINISH: | Powder Coat + Scorpion Stone Guard |
Models
| Number | Size | Weight | Payload | Links |
|---|---|---|---|---|
| DT58-5K | 60" X 8' | 1,809 lbs | 3,191 lbs | |
| DT510-5K | 60" X 10' | 1,918 lbs | 3,082 lbs |
